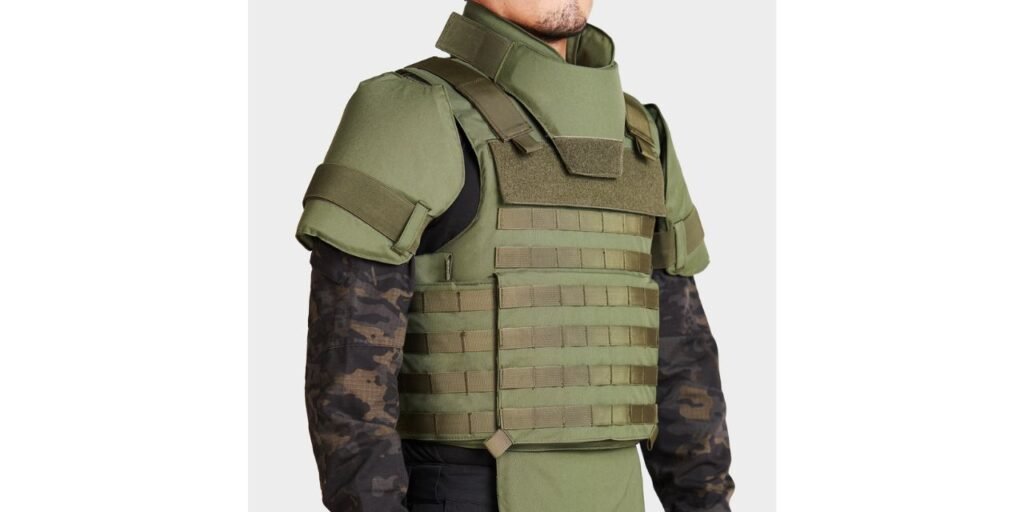

A new generation of ultra-lightweight, multiaxial non-crimp fabrics is redefining ballistic protection for personal protective equipment. Developed by Karl Mayer in Germany, these fabrics are engineered specifically for bulletproof vests, offering significant improvements in comfort, strength, and production efficiency.
The innovation centers on the use of ultra-high molecular weight polyethylene (UHMWPE) fibers, which deliver high ballistic performance at a fraction of the weight of traditional aramid fibers. UHMWPE fibers boast tensile strengths exceeding 3.5 GPa and a specific gravity of just 0.97, making them lighter than water and over 30% lighter than aramid alternatives. This allows for fewer layers in protective vests, reducing overall weight without sacrificing safety.
Key to the manufacturing process is the creation of single-layer UHMWPE tapes using advanced fiber spreading machines. These tapes, just 40-50 µm thick and weighing under 30 gsm, are combined with a 10 µm polymer film to maintain structural integrity and prevent weak spots. The bonding process uses integrated heating, eliminating the need for liquid adhesives or water evaporation, which streamlines production and reduces environmental impact.
The tapes are automatically stacked in alternating orientations to form cross-ply structures, enhancing impact resistance and energy dispersion. Independent testing under the NIJ Standard 0101.06 confirmed the material’s ability to pass both perforation and backface signature tests at a total weight of 6,000 gsm, meeting stringent ballistic requirements.
These technical advancements result in improved yarn alignment, compatibility with higher yarn counts, and lower material and labor costs. The fabrics also offer excellent UV and chemical resistance, low moisture absorption, and extended durability, making them ideal for modern ballistic protection.
