Introduction
The ASTM D737 Air Permeability Tester is a critical instrument in the textile industry, designed to measure the air permeability of fabrics. Air permeability refers to the ability of a fabric to allow air to pass through it, which is a crucial factor in determining the comfort, breathability, and functional performance of textiles. This parameter is especially important in applications such as sportswear, medical textiles, protective clothing, and filtration materials.
The Textile Air Permeability Tester follows the ASTM D737 standard, which provides a standardized method for evaluating the air permeability of various fabrics. This article explores the working principle, significance, applications, and advantages of the ASTM D737 Air Permeability Tester, along with its role in textile quality assurance.

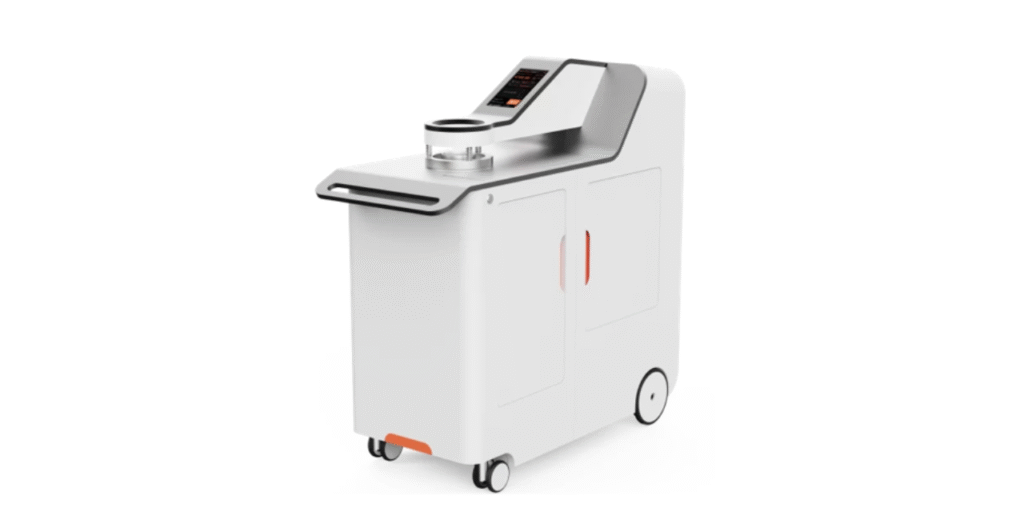

What is the ASTM D737 Air Permeability Tester?
The ASTM D737 Air Permeability Tester is a precision instrument that measures the rate of airflow through a fabric under a specified pressure difference. The test is conducted by clamping a fabric sample over an opening and applying a controlled air pressure. The amount of air passing through the fabric is measured, providing an air permeability value in units such as cm³/cm²/sec or ft³/min/ft².
Key Features of the ASTM D737 Air Permeability Tester
Standard Compliance: Adheres to ASTM D737, ensuring consistent and reliable test results.
Wide Testing Range: Suitable for various fabric types, including woven, nonwoven, knitted, and coated textiles.
Precision Measurement: Equipped with high-accuracy sensors to detect even minor variations in air permeability.
User-Friendly Interface: Modern testers feature digital displays and automated controls for ease of operation.
Adjustable Test Area: Allows testing under different pressure conditions to simulate real-world usage.
Why is Air Permeability Testing Important?
Air permeability is a critical quality parameter for textiles, influencing both performance and comfort. Below are some key reasons why testing with a Textile Air Permeability Tester is essential:
1. Comfort and Breathability in Apparel
Fabrics with high air permeability are more breathable, making them ideal for sportswear, summer clothing, and activewear. The ASTM D737 Air Permeability Tester helps manufacturers ensure that their fabrics meet comfort requirements.
2. Performance in Technical Textiles
In applications such as medical gowns, military uniforms, and filtration materials, controlled air permeability is crucial. For example:
Medical Textiles: Surgical drapes and gowns must balance breathability with barrier protection.
Protective Clothing: Firefighter suits need controlled airflow to prevent heat stress while maintaining safety.
Filtration Fabrics: Air and liquid filters require precise permeability to ensure efficient particle retention.
3. Quality Control in Manufacturing
Textile manufacturers use the ASTM D737 Air Permeability Tester to maintain consistency in production. Variations in yarn density, weave structure, or finishing treatments can affect air permeability, and this tester helps identify defects early.
4. Compliance with Industry Standards
Many industries require textiles to meet specific air permeability standards. The ASTM D737 method ensures that fabrics comply with regulatory and customer specifications.
How Does the ASTM D737 Air Permeability Tester Work?
The testing process involves the following steps:
1. Sample Preparation
A fabric sample is cut to the required dimensions (typically 20 cm² or more).
The sample is conditioned in a standard testing environment (e.g., 21°C and 65% relative humidity) to ensure consistent results.
2. Mounting the Sample
The fabric is securely clamped over the test head to prevent air leakage.
The test area is adjusted based on fabric thickness and expected permeability.
3. Conducting the Test
A controlled air pressure is applied to one side of the fabric.
The airflow rate passing through the fabric is measured using a flow meter.
The results are recorded in the desired units (e.g., CFM – Cubic Feet per Minute or mm/s).
4. Data Analysis
The Textile Air Permeability Tester provides quantitative data, which can be compared against industry benchmarks.
Multiple tests may be conducted to ensure accuracy and repeatability.
Applications of the ASTM D737 Air Permeability Tester
The ASTM D737 Air Permeability Tester is widely used across various textile sectors:
1. Sportswear and Activewear
Ensures breathability in running shirts, yoga pants, and outdoor gear.
Helps in fabric selection for enhanced athletic performance.
2. Medical and Hygiene Products
Tests surgical masks, wound dressings, and disposable medical fabrics.
Ensures optimal airflow for patient comfort and safety.
3. Automotive and Aerospace Textiles
Evaluates seat fabrics, cabin air filters, and insulation materials.
Ensures durability and comfort in vehicle interiors.
4. Industrial and Protective Clothing
Assesses fire-resistant fabrics, chemical protective suits, and military uniforms.
Balances protection with wearer comfort.
5. Home and Technical Textiles
Tests curtains, upholstery, and mattress fabrics for ventilation properties.
Ensures optimal performance in filtration media.
Advantages of Using the ASTM D737 Air Permeability Tester
Standardized Testing: Ensures compliance with ASTM D737 and other global standards (ISO 9237, EN ISO 9237).
High Accuracy: Delivers precise measurements for quality assurance.
Versatility: Suitable for a wide range of textile materials.
Efficiency: Automated features reduce testing time and human error.
Data Logging: Modern testers store results for traceability and analysis.
Conclusion
The ASTM D737 Air Permeability Tester is an indispensable tool in textile testing, providing critical data on types of fabric for clothing breathability and performance. By adhering to the ASTM D737 standard, manufacturers can ensure product quality, meet industry regulations, and enhance customer satisfaction. Whether for sportswear, medical textiles, or industrial applications, the Textile Air Permeability Tester plays a vital role in optimizing fabric functionality.
Investing in a reliable ASTM D737 Air Permeability Tester enables textile producers to maintain high standards, innovate in material development, and deliver superior products to the market.
